SA4-EV Explanation Video: Forms and Actions for Managing Model Objects

How to Start

1. Access the GitHub organization’s repositories page.
   • Log into GitHub.
   • Open the comp-7012-s25 repositories page.
2. Create a new repository from the template.
   • Click the New repository button at the top-right of the page.
   • Fill out the Create a new repository form as follows:
     • Repository template: Select template-sa4-ev.
     • Owner: Select comp-7012-s25.
     • Repository name: Use the form below to generate the name for your repository.
       • It is required that your repository’s name precisely follow the format produced by the form.
     • Select Private, so that only you and your instructors can access your repository.
   • Click the Create repository button at the bottom right of the page.
3. cd into your workspace folder.
4. git clone the repo you created above.
5. cd into the new working tree.
6. Open the working directory in VS Code and bundle install/rails db:migrate && rails db:seed.
7. Start your screen recording (as per these instructions) and begin the task.

Your UofM Username Submission Opportunity 1 2 3

sa4-ev-hsimpson-1

Task

The aim of this project is enable users to make a database of video games. The project already includes a VideoGame model class, as per this class diagram:

In addition to this model class, the project also already includes the following:

• Attribute validations for the VideoGame class
• Seeds for the VideoGame class
• A VideoGamesController class
• Routes, actions, and view templates for an index page
• A root route set to redirect to the index page
• The flash-notification infrastructure described in the Flash Notifications deets

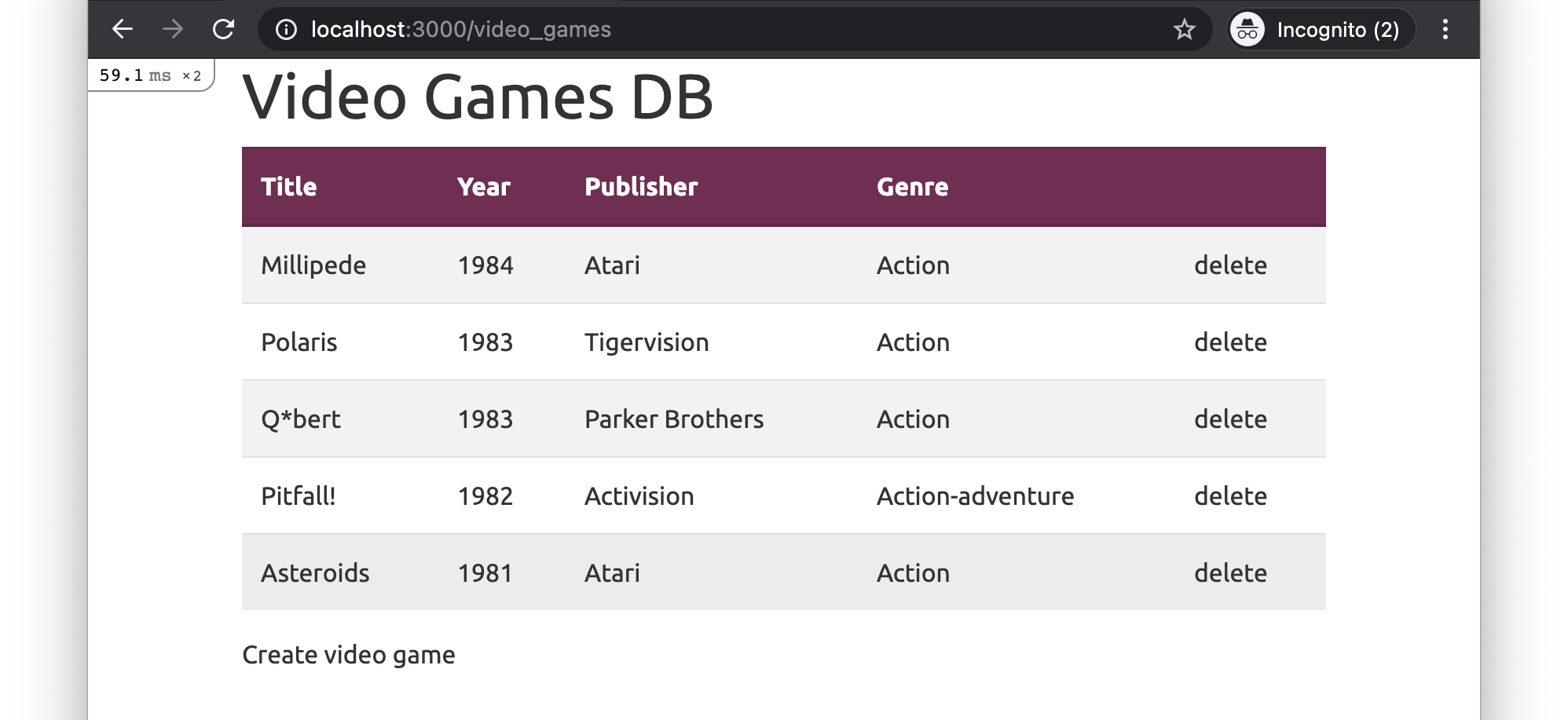

If you initialize and run the app, you will see that the index page looks like this:

The video can begin after you have cloned, initialized, and run the base app.

Task to perform: You must add new/create and destroy functionality for VideoGame objects.

Detailed Specifications

Existing Functionalities

• Feature: Browse Video Games
  • As a user,
  • I want to see a list of video games
  • So that I can choose one to view more details about
  • Scenario: Viewing the video game index page content
    • Given I have created two sample VideoGame records
    • And I am on the /video_games page
    • Then I should see an h1 element with text “Video Games DB”
    • And I should see a table with headers “Title”, “Year”, “Publisher”, “Genre” and one empty header
    • And I should see two table body rows with the sample records’ title, year, publisher, genre, and link with text “delete”
    • And I should see a link with text “Create video game”
  • Scenario: Redirecting from the root page to the video_games page
    • When I visit the root URL
    • Then I should be automatically redirected to the /video_games page

New Functionalities

• Feature: Create New Video Game
  • As a user,
  • I want to add a new video game to the database
  • So that I can expand my list of video games
  • Scenario: Viewing the new video game form page
    • Given I am on the /video_games/new page
    • Then I should see an h1 element with text “New Video Game”
    • And I should see a form with fields “Title”, “Year”, “Publisher”, “Genre” and a “Create Video game” button
  • Scenario: Creating a new video game with valid details
    • Given I am on the /video_games/new page
    • When I fill in a title
    • And I fill a year that is greater than or equal to 1950
    • And I fill in a publisher
    • And I fill in a genre from the list
    • And I click the “Create VideoGame” button
    • Then a VideoGame record with matching attribute values should be created
    • And I should be on the /video_games page
    • And I should see a success-styled flash message with text “New video game successfully added!”
    • And I should see the new video game in the video game list
  • Scenario: Creating a new video game with missing title
    • Given I am on the /video_games/new page
    • When I do not fill in a title
    • And I click the “Create VideoGame” button
    • Then a VideoGame should not be created
    • And I should see a HTML5 validation popup with text “Please fill out this field.”
  • Scenario: Creating a new video game with invalid year
    • Given I am on the /video_games/new page
    • When I fill in an year that is not greater than 1950
    • And I click the “Create VideoGame” button
    • Then a VideoGame should not be created
    • And I should see an error-styled flash message with text “Video game creation failed.”
    • And I should see the new video game form with error messages indicating the validation failures
  • Scenario: Creating a new video game with invalid genre
    • Given I am on the /video_games/new page
    • When I fill in a genre that does not match the list
    • And I click the “Create VideoGame” button
    • Then a VideoGame should not be created
    • And I should see an error-styled flash message with text “Video game creation failed.”
    • And I should see the new video game form with error messages indicating the validation failures
  • Scenario: Navigating to the new video game page from the index page
    • Given I am on the /video_games page
    • When I click on the “Create video game” link
    • Then I should be on the /video_games/new page
  • Scenario: Navigating back to the video game index page from the new page
    • Given I am on the /video_games/new page
    • When I click on the “Cancel” link
    • Then I should be on the /video_games page
• Feature: Destroy Video Game
  • As a user,
  • I want to delete an existing video game
  • So that I can remove it from the database
  • Scenario: Deleting a video game from the index page
    • Given I am on the /video_games page
    • When I click the “delete” link for a video game
    • Then the VideoGame record with that id should no longer exist
    • And the number of video games should decrease by one
    • And I should be on the /video_games page
    • And I should see a flash message “VideoGame successfully removed”
    • And I should not see the deleted video game in the video game list on the /video_games page

Additional Constraints:

• You must follow the standard Rails conventions:
  • Each URL pattern must have a path helper following the standard Rails convention:
    • /video_games is video_games_path
    • /video_games/new is new_video_game_path
    • /video_games/:id is video_game_path
  • get /video_games routes to VideoGamesController#index
  • post /video_games routes to VideoGamesController#create
  • get /video_games/new routes to VideoGamesController#new
  • delete /video_games/:id routes to VideoGamesController#destroy
• Links must use the link_to or button_to helper where appropriate with the appropriate path helper
  • The button_to can be styled with class: 'btn btn-link p-0 pb-1 m-0', form: { class: 'd-inline' } to match the other links.
• Forms must use the bootstrap_form_with helper
• Model class names, attribute names, and attribute types must be as instructed
• 5 seeds must be created as instructed upon seeding
• All HTML tags must be properly closed
• No duplication of head/style/body elements in the rendered HTML

Note: Italicized requirements will be manually confirmed by the graders.

Testing Your Work with RSpec

Each of the feature stories above corresponds to an RSpec feature spec. These tests (and others for the additional constraints) have been provided in the repository to help you check whether your implementation meets the requirements.

Recommended Workflow

1. Read through the detailed specifications first. Understand what is required for each page and scenario.
2. Approach 1 - for those familiar with Test-Driven Development (TDD):
   • Run rspec spec/features to execute the feature tests.
   • Try to write the minimum amount of code needed to make each test pass.
   • Watch the tests fail and pass as you meet each requirement.
   • At the end, run all the provided tests with the rspec command to check if everything passes.
     • Note that not all tests are feature tests, so it is necessary to run rspec at the end to ensure that all tests are run.
3. Approach 2 - for those less experienced with testing:
   • Work through the specifications step by step, ensuring your implementation meets each requirement.
   • Once you’ve completed your implementation, run all the tests with the rspec command to check if everything passes.

Either of the above approaches is fine, as long as all tests pass by the end.

How to Submit

Once you’ve completed the task and confirmed that all tests pass, perform the follow steps to submit your work.

1. Commit your changes and push them to GitHub.
   • git add -A
   • git commit -m "Completed SA4-EV Explanation Video"
   • git push
2. Stop recording and save the video.
   • See these instructions for how.
3. Submit to Canvas.
   • Submit a Word DOCX that contains the following:
     • The link to your GitHub repository where your code is hosted.
     • The link(s) to your video(s) as per these instructions.
